Prima Power

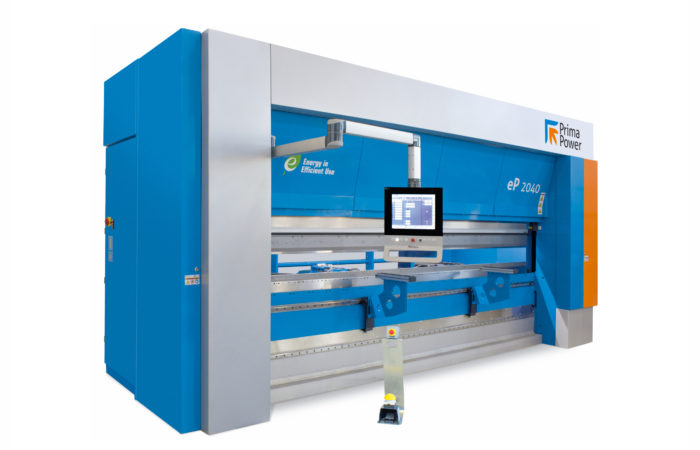

The eP-Series press brake by Prima Power is based on extensive experience in press brakes and servo electric machine tools for sheet metal working. Prima Power has been a true pioneer in applying servo electronics in sheet metal working since 1998.

The eP-Press features the advantages of high acceleration, deceleration and fast response times of the servo-electric drive system. Compared to conventional press brakes considerable productivity increase can be reached; reduction of cycle times by up to 30% and more is the reality.

The innovative machine concept combines productivity, accuracy, flexibility and reliability with high respect to ecological aspects – we call this concept Green Means®.

The concept offers you both sustainability and manufacturing efficiency and productivity. It means greater versatility, lower power consumption, less maintenance and no oil to purchase or to get rid of. In addition, easy programming and outstanding accuracy eliminate waste production. You simply make better sheet metal components at lower cost.

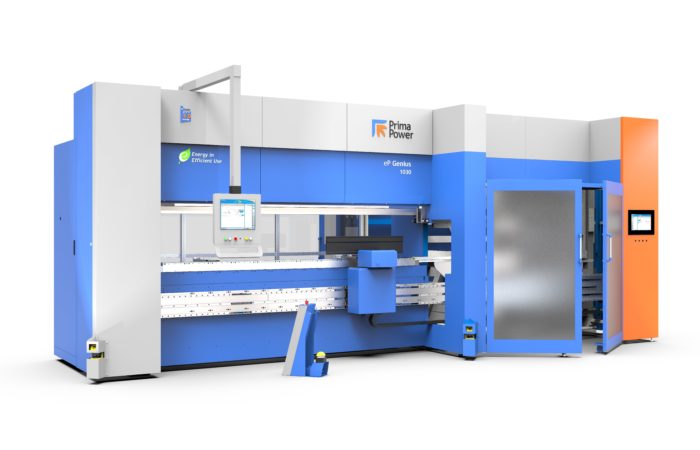

Prima Power brand-new bending solution eP Genius 1030 consists in the integration of the well-known servo-electric eP-1030 press brake with one automatic tool change storage. This concept offers you a more versatile, faster and reliable bending solution, which eliminates the manual set-up of the machine, and allows the operator to commit his time and skills to the preparation of bending batches.

eP Genius is the ideal solution for minimum batches where it is possible to estimate the machine set-up and short cycle times help you gaining higher market competitiveness.

During the tool change, a safety laser scanner detects the working area and protects the operator without need for human intervention when it’s time to reset the machine functionalities.

Standard features

The eP-1030 included in the solution is the most versatile machine in the eP servo-electric range:

• a perfect combination of tonnage (105 tons) and work capacity (3,060 mm of bending length)
• automatic CNC crowning
• 5-axis back gauge

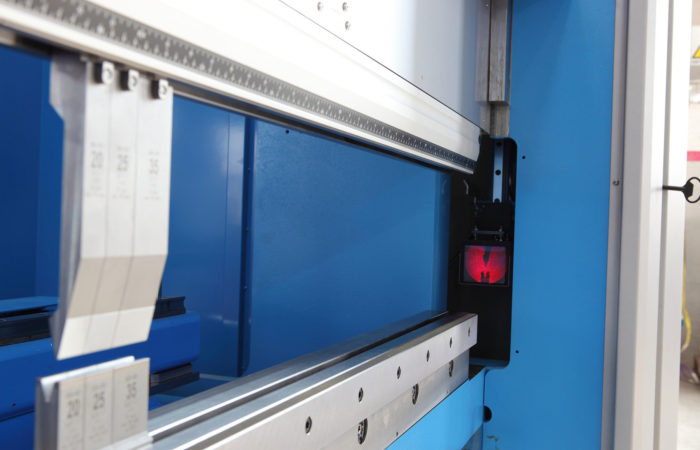

• IRIS Plus angle control system on CNC-controlled motorized arms.

The tools storage, main innovation of this product can accommodate a total of 32 meters of tools to be placed on 8 tool-holder supports that move on 3 axes. It can handle Wila-style tools with a minimum length of 20 mm up to 515 mm.

A tool rotation device rotates the tools taken from the storage to grant multiple processing possibilities.

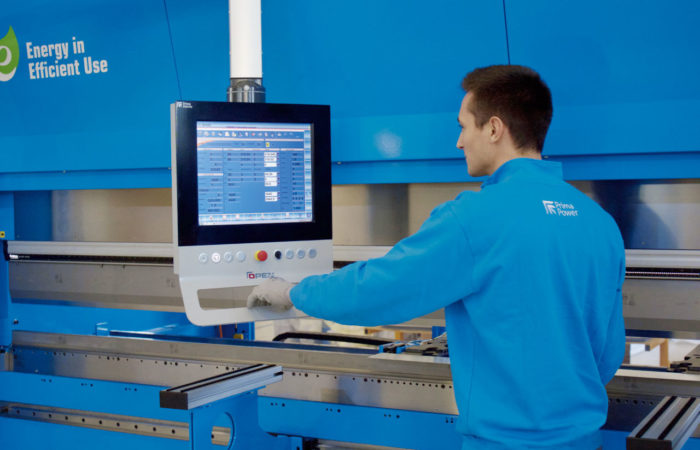

The last-generation HMI allows the programming of the workpiece in a simple and intuitive way, both on-board and off-line, as well as automatic management of the machine set-up.
